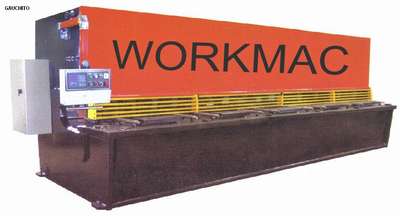

Guillotina Hidráulica
Precio de Oferta:  Consulte
Precio:  Consulte



seleccione una imagen para aumentar



  Pagina nueva 1

INFORMACIÓN GUILLOTINA CNC

especifica-ciones unidades w-6 3200mm ww-6 w8-3200 w-8 4000 w 100 3200 w 10 4000 w 12 3200
mm -pulg  4000 mm-pulg mm-pulg mm-pulg mm-pulg mm-pulg
  mm-pulg
espesor de chapa mm  pulg  6  1/4 6  1/4 8  1/3 8  1/3 10  3/8 10  3/8 12  1/2
ancho mm  pulg 3070 122.8  4070 162.8  3070 122.8  4070 162.8  3070 122.8  4070 162.8  3070 122.8
golpes minuto min  min  18-48  18-48  15-35  15-35  15-35  15-35  15-35  15-35  15-35  15-35  15-35  15-35  15-35  15-35
largo mm  in  5-1000 0.2-40 5-1000 0.2-40  5-1000  0.2-40  5-1000  0.2-40  5-1000  0.2-40 5-1000  0.2-40  5-1000  0.2-40
ángulode corte 0 0 0.50-20 0.50-20  10   20 10   20 10-2.50  10-2.50  10   20 10   20 10-2.50  10-2.50  10   20 10   20 10   20 10   20
velocidad mm/s  in/s  300 12 300 12 300 12 300 12 300 12 300 12 300 12
clamps pcs  pcs  14 14 18 18 14 14 18 18 14 14 18 18 14 14
tanque de aceite Litrios   300 78 300 78 300 300 300 78 300 78 300 78 300 78
peso kg  lb  6150 13530 8050 17710 8500 18700 11000 24200 10500 23100 12500 27500 12000 26400



Parametro Especificacion Espesor de Corte Ancho de Corte Angulo de Corte Numero de Golpes Rango de Carrera Motor Dimensiones Generales
mm mm (º) min -1 mm kw mm (L X W X H)
4x2000 4 2000 1º 30` 24 600 4 2550x1430x1560
4x2500 4 2500 1º 30` 22 600 4 3100x1430x1560
4x3200 4 3200 1º 30` 20 600 5.5 3840x1680x1670
6x2500 6 2500 1º 30` 18 600 7.5 3040x1610x1620
6x3200 6 3200 1º 30` 16 600 7.5 3840x1610x1620
6x4000 6 4000 1º 30` 14 600 7.5 4640x1705x1700
8x2500 8 2500 1º 30` 14 600 11 3240x1610x1620
8x3200 8 3200 1º 30` 12 600 11 4010x1610x1620
8x4000 8 4000 1º 30` 10 600 11 4680x1705x1700
10x2500 10 2500 1º 48` 12 600 15 3350x2050x1950
10x3200 10 3200 1º 48` 10 800 15 4050x2050x1950
12x2500 12 2500 1º 30` 10 800 18.5 3320x2050x2230
12x3200 12 3200 1º 30` 8 800 18.5 4020x2050x2230
12x4000 12 4000 1.5º 8 800 22 4850x2400x2250
16x2500 16 2500 8 800 22 3520x2060x2350
16x3200 16 3200 6 800 37 4100x5060x2350
16x4000 16 4000 6 800 30 4900x2400x2250
20x2500 20 2500 2.5º 8 800 22 3440x2088x2570
20x3200 20 3200 2.5º 6 800 30 4100x2350x2710
20x4000 20 4000 2º 30` 5 800 37 4920x2400x2790
25x4000 25 4000 5 1000 45 5120x3450x2900
32x4000 30 4000 3º 50` 4 1000 55 5180x3680x3750





  Empresa: Gauchito SRL.
  Estado: Nueva
  Embalaje :  No Aplicable
  Garantia:  No Aplicable

  Formas de pago :  Otro


www.gauchito.com.ar - folleto y precio sugerido - puede haber cambios sin previo aviso - precio sujeto a final confirmacion
